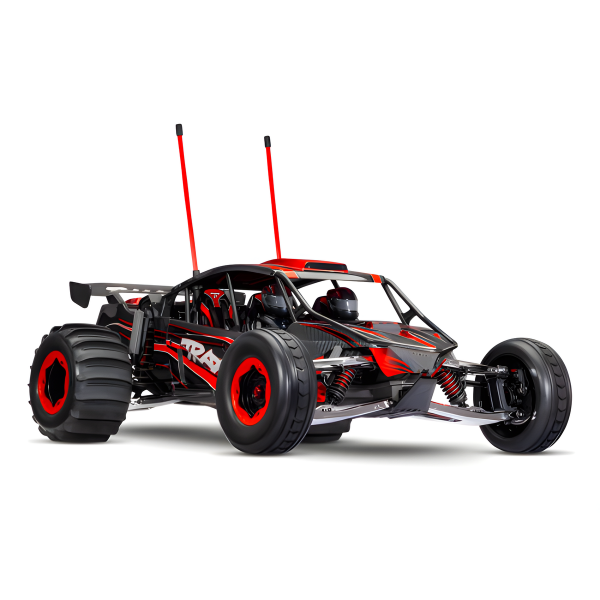

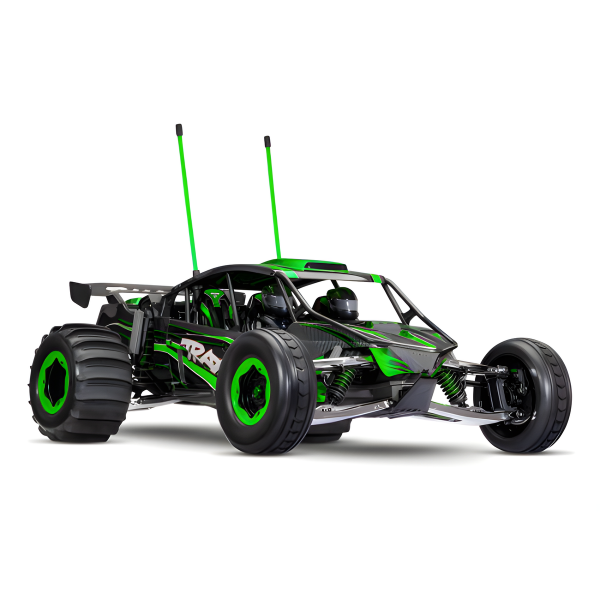

Traxxas Funco Pro Scale Sand Car 8S 2WD RTR

Model Specs:

Name: Funco Pro Scale Replica

Speed: 55+ mph with dual 4S LiPo batteries and speed gearing

Scale: X-Series

Length: 32 inches (812 mm)

Width: 21.7 inches (551 mm)

Ground Clearance: 1.98 inches (50 mm)

Weight: 22.06 pounds (10 kg)

Height: 11.1 inches (283 mm) (body), 19.6 inches (498 mm) (whip lights)

Wheelbase: 21.4 inches (543 mm)

Shock Length: 5.08 inches (129 mm) (front), 7.13 inches (181 mm) (rear)

Tires (Arrow Pattern, Front): 6.8″ x 2.3″ (173 mm x 58 mm)

Tires (Paddle, Rear): 7.5″ x 4.0″ (191 mm x 102 mm)

Wheels (Front): 3.2″ (82 mm, inner) x 4.9″ (125 mm, outer)

Wheels (Rear): 3.6″ (91 mm, inner) x 4.7″ (120 mm, outer)

Speed Control: Velineon VXL-8s

Motor: Velineon 1200XL Brushless

Overall Drive Ratio: 16.4:1 (21/50 motor pinion and spur gear)

Differential Type: Sealed, four-gear, limited-slip

Gear Pitch: Module 1.5 (transmission), Module 1.0 (pinion & spur)

Chassis Structure/Material: Reinforced Nylon Tub

Brake Type: Electronic (rear), Dual vented discs (front)

Driveline: Direct-drive, RWD

Steering: Bellcrank

Radio System: TQi 2.4 GHz Transmitter with TSM receiver

Steering Servo: 2085XL metal gear (450 oz-in.)

Skill Level: 5

Battery Tray: 186 mm x 51 mm x 44 mm

Features:

• Funco Pro Scale Replica Clipless Body
• Full-length tube frame support
• Detailed interior with driver figures
• Replica engine with licensed accessories
• 10″ color-matched whip lights
• Spring loaded-Flex Tech mounts for rollover protection
• High-performance rear wing
• Wheelie bar

Velineon 1200XL Brushless Motor

• “Big Block” brushless motor
• 4-pole 1275 Kv
• 5 mm output shaft
• Oversize aluminum heatsink for improved cooling
• Dual cooling fans

55+ mph with Two 4S LiPo Batteries and Included Speed Gearing

Traxxas Stability Management

• Improves straight line acceleration and braking on low-traction surfaces
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

TQi 2.4 GHz 2-Channel High Output Radio System

• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Patented waterproof receiver box with easy-access plug
• Direct-Drive Transmission
• 1.5 mod wide-face steel gears
• 1.0 mod steel pinion and spur gears
• Fixed gear mesh system
• Rear Differential
• Huge 1.5 module straight-cut ring gear
• Sealed 4-gear design
• Splined outdrives attached with external thru-bolt method
• Reinforced bulkhead and covers for increased bearing support
• Rock-Solid Motor Mounting System
• Precise preset gear mesh adjustments
• 4 keyed pins lock the motor in place
• Motor retention separate from gear mesh
• GT Maxx Shocks
• Machined aluminum threaded body
• Extra-large bore and capacity
• Height-adjustable spring retainer
• Heavy-duty composite shock caps with pivot balls
• Lower spring perches bolted on
• Braking
• Electronic rear brakes
• Powerful front disc brakes with spring-loaded calipers
• Operated by 2075 digital servo
• Sheathed brake cables
• Stainless steel slotted and drilled brake rotors
• Low-CG Chassis Design
• Modular chassis with interlocking bulkheads
• Low center of gravity for improved handling
• Flat bottom design
• Interlocking skid plates
• High-strength buttressing on shock towers
• Dual snap-lock battery compartments
• Protects batteries from side impacts
• Allows secondary battery-clip security
• Interlocking components for tight tolerances
• Wire management for clean appearance
• Wheels and Tires
• 7.5″ Rear paddle tires
• Aggressive paddle design
• Belted carcass resists ballooning
• 6.8″ front arrow-pattern tires
• Excellent traction on sand, dirt, and pavement
• Replica Funco beadlock wheel design
• Color-matched beadlock rings and axle nuts
• High-strength glue and bead design
• Huge 24 mm splined wheel hubs
• Steering
• Powerful 450 oz-in steering servo (2085XL)
• Heavy-duty cam-style servo saver
• Dirt evacuation channels
• Fully waterproof
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating
• Requires Battery and Charger (Sold Separately)

What’s In The Box:

• Funco Pro Scale Replica with Traxxas Big Block brushless motor
• VXL-8s waterproof electronic speed control with integrated telemetry
• TQi 2.4 GHz radio system
• High visibility whip lights
• Wheelie bar
• Speed gearing
• High quality maintenance tools

What You’ll Need:

• LiPo BatteriesTraxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4S Completer Pack (Part 2997).
• LiPo Balance Charger with iDTraxxas EZ-Peak Live Dual 4S-capable charger is recommended for easy and fast charging performance (model 2973).
• AA Alkaline Batteries Four AA alkaline batteries for the transmitter.
